Startech USB 3.0 HDD Dock 2.5/3.5" SATA & IDE UASP

69,50 € Ilman ALV
  • Toimitus alkaen: 8,50 €
Tämä tuote on poistunut valikoimasta, eikä sitä voi tilata
  • Tuotenumero
  • 5010914077
  • Valm. tuotenro.

Lyhyt kuvaus

Tallennuslaitteen ohjain

Tärkeimmät ominaisuudet

  • Maximum versatility with support for SATA and IDE as well as 2.5in and 3.5in HDDs & SSDs
  • Optimal performance with support for SATA III & UASP
  • Hassle-free operation with upright slot-loading SATA and IDE drive bays
  • Compatible with USB 3.0/2.0/1.1
  • Compatible with SATA revision I/II/III drives
  • Compatible with PATA (IDE) 66/100/133 MBps hard drives
  • Supports 2.5" or 3.5" form factor hard drives (HDD) or solid state drives (SSD)


  • Compact, desktop-style form factor
  • Plug-and-Play and hot-swap compatible
  • Patented drive ejection mechanism for SATA drives
  • Combined power switch and status LED for each drive

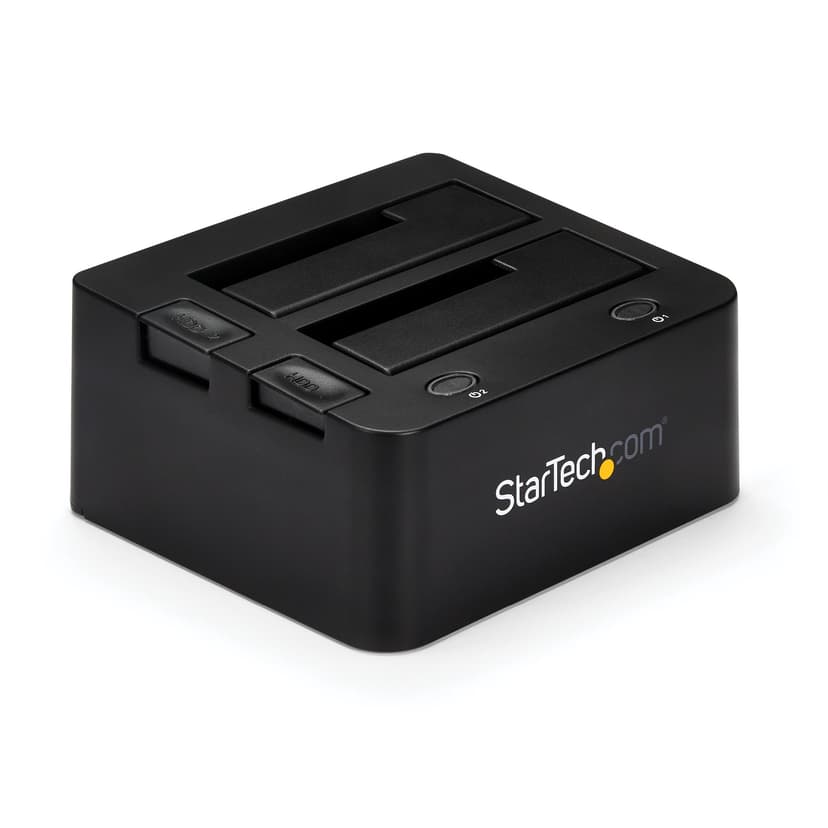

Connect both an IDE and a SATA 2.5/3.5in hard drive or solid state drive to your computer system using an available USB 3.0 port, with support for UASP for optimal performance. The UNIDOCKU33 USB 3.0 Universal HDD / SSD Dock enables you to instantly access your 2.5 or 3.5in IDE and SATA hard drives through two top loading drive slots, saving you the hassle of mounting the drives into a computer or external enclosure or tray.Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller.The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives).UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.At the same peak in testing UASP also shows an 80% reduction in required processor resources.Testing results were obtained using an Intel Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

Tekniset tiedot

Valmistaja StarTech.com
Määrä pakkauksessa 1
Laitetyyppi Storage controller - external
Väri Musta
Tuotetyyppi Tallennuslaitteen ohjain
Liitännät 1 x USB 3.0 - 9 pin USB Type B, 1 x SATA 6Gb/s - 22 pin Serial ATA ( internal (bay1) ) ¦ 1 x ATA-133 - 40 PIN IDC ( rear )
Levypaikat 1 x hot-swap - 2.5" / 3.5" shared ¦ 1 x top accessible - 2.5" / 3.5" shared
Expansion / Connectivity
Interfaces 1 x SATA 6Gb/s - 22 pin Serial ATA ( internal (bay1) ) ¦ 1 x ATA-133 - 40 PIN IDC ( rear )
Koko tai muoto Ulkoinen
Yhteys USB 3.0
Liitäntä ATA / SATA 6Gb/s
Tallennuslaitteiden enimmäismäärä 2
Tuetut laitteet Kiintolevyasema, Solid state drive
Storage Controller
Data Transfer Rate 600 MBps
Sisältyvät lisätarvikkeet
Sisältyvät kaapelit 1 x USB 3.0 cable - external ¦ 2 x IDE cable - external
Vaadittu käyttöjärjestelmä Linux, Apple MacOS X 10.6, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Google Chrome OS, Apple MacOS X 10.7 Lion, Windows 8 (32/64 bits), Apple MacOS X 10.8, Windows 8.1 (32/64 bits), Apple MacOS X 10.9
Voltage Required AC 120/230 V
Hyväksynnät ja luokitukset Plug and Play, FCC, RoHS
Alin käyttölämpötila 5 °C
Ylin käyttölämpötila 80 °C
Ilmankosteus käytettäessä 8 - 90%
Mitat ja Paino
Leveys 14 cm
Syvyys 13 cm
Korkeus 7 cm
Paino 0.61 kg
Yhteensopivan kiintolevyn koko 2.5", 3.5"
Yhteensopivan kiintolevyn koko (metrinen) 6.4 cm, 8.9 cm
Muut tiedot
Ominaisuudet LED indicator, tested with up to 1TB 5400 RPM 2.5” hard drives, tested with up to 6TB 7200 RPM hard drives, UASP transfer protocol
Huolto & Tuki
Huolto ja tuki 2 vuoden takuu
Tarkemmat huolto- ja tukitiedot Limited warranty - 2 years
