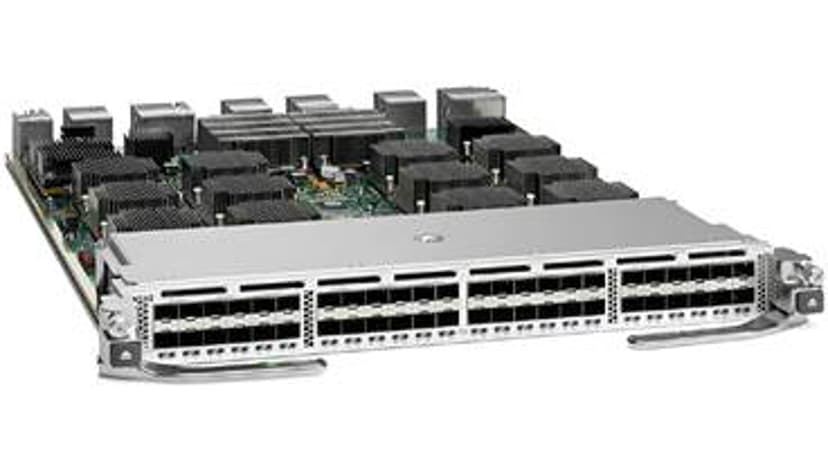

Cisco Nexus 7700 F2-Series Enhanced 48-Port Fiber 1 and 10 Gigabit Ethernet Module

34 299,50 € Ilman ALV 1 065 €/ kuukausi (Jaa maksu 36 kuukauden ajalle)
  • Varastostatus: Ei varastotuote
  • Toimitus alkaen: 8,50 €
Huomaa, että tämä on tilaustuote ja sitä ei voi palauttaa. Tilausta ei voida myöskään peruuttaa tai palauttaa tilauksen vahvistamisen jälkeen. Voit lukea lisää ostoehdoistamme kohdasta 7.
  • Tuotenumero
  • 5010926551
  • Valm. tuotenro.
  • N77-F248XP-23E=

Lyhyt kuvaus

Cisco Systems

Tärkeimmät ominaisuudet

  • Scriptable command-line interface (CLI)
  • Cisco Data Center Network Manager (DCNM) web services
  • Tool Command Language (TCL) interpreter
  • Cisco Embedded Event Manager (EEM)
  • Configurable template-based queuing modes
  • Enables fairness when one or more destinations is congested and provides support for lossless unified fabric
  • Deficit-Weighted Round-Robin (DWRR)


  • Priority-based flow control (PFC)
  • Enhanced transmission selection (ETS)
  • Data Center Bridging Exchange (DCBX)
  • Virtual SANs (VSANs)
  • Inter-VSAN Routing (IVR)
  • PortChannels (up to 16 links)
  • SAN trunking


The Cisco Nexus 7000 series switches are the foundation of the Cisco Unified Fabric solution. Designed to meet the requirements of mission-critical data centers, these switches deliver exceptional availability, outstanding scalability, and the proven and comprehensive Cisco NX-OS software data center switching feature set.The Cisco Nexus 7700 platform is the latest extension to the Cisco Nexus 7000 series modular switches. With more than 83 terabits per second (Tbps) of overall switching capacity, the Cisco Nexus 7700 platform delivers the high-capacity 10, 40, and 100 Gigabit Ethernet ports in the industry, with up to 768 native 10-Gbps ports, 384 40-Gbps ports, and 192 100-Gbps ports. This high system capacity is designed to meet the scalability requirements of the largest cloud environments.The Cisco Nexus 7700 switches have operation and feature consistency with the existing Cisco Nexus 7000 series switches, using a common system architecture, the same application-specific integrated circuit (ASIC) technology, and the same proven Cisco NX-OS software releases.

Tekniset tiedot

Valmistaja Cisco Systems
Verkko ja kommunikointi
Liitettävyystekniikka Langallinen
Verkko-ominaisuudet 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE), Gigabit Ethernet
Network & Communication
Networking / Data Link Protocol GigE, 10 GigE, FCoE
Networking / Features ASIC VPN, Data Center Bridging Exchange (DCBX) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Deficit Weighted Round Robin (DWRR)
Compliant Standards IEEE 802.1Qbb, IEEE 802.1Qaz
Networking / Performance Forwarding performance : 720 Mpps
Compliant Standards
Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1
Mitat ja Paino
Leveys 40.39 cm
Syvyys 55.37 cm
Korkeus 4.4 cm
Paino 7.7 kg
Huolto & Tuki
Huolto ja tuki 1 vuoden takuu
Huolto ja tuki-lisätarvikkeet Limited warranty - 1 year
Verkkotyyppi Laajennusmoduuli
Device Type Expansion module
Form Factor Plug-in module
