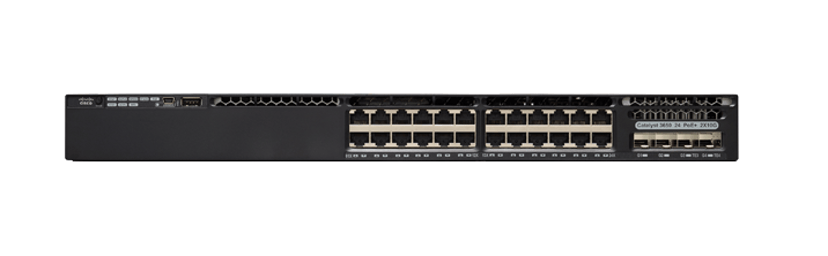

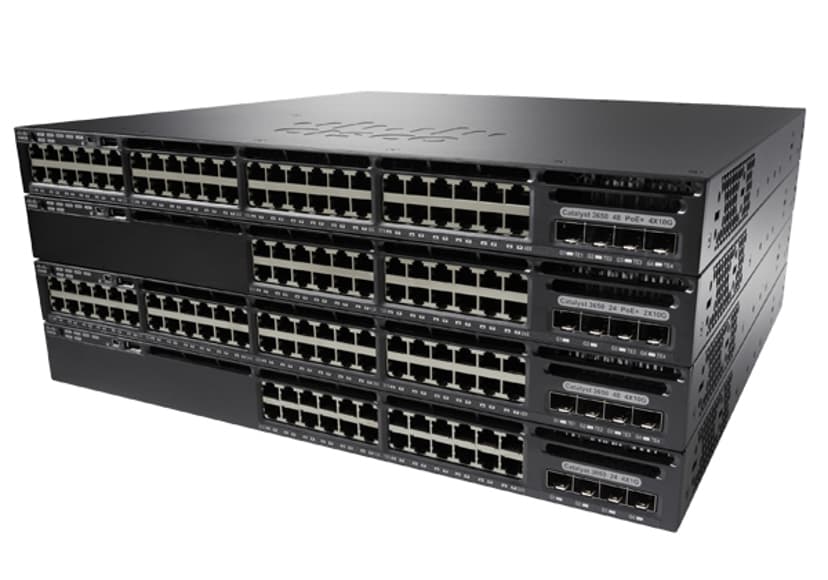

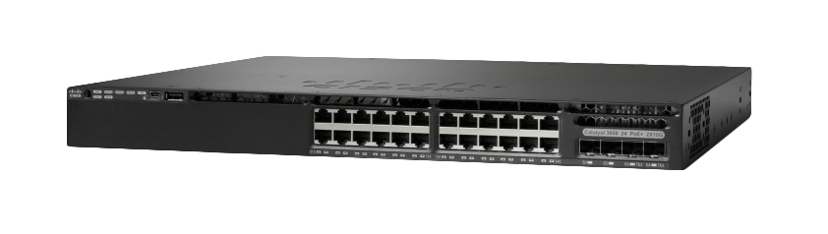

Cisco Catalyst 3650-24PS-E

5 299,50 € 165 €/ kuukausi (Jaa maksu 36 kuukauden ajalle)
  • Varastostatus: Ei varastotuote
  • Toimitus alkaen: 8,50 €
  • Tuotenumero
  • 5010945912
  • Valm. tuotenro.
  • WS-C3650-24PS-E

Tekniset tiedot

Ylätunniste
Valmistaja Cisco Systems
Power
Power Redundancy Optional
General
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
RAM 4 GB
Flash Memory 2 GB
MAC Address Table Size 32K
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Performance Switching capacity : 88 Gbps ¦ Forwarding performance : 41.66 Mpps
Ports 24 x 10/100/1000 (PoE+) + 4 x SFP
Subtype Gigabit Ethernet
Miscellaneous / Rack Mounting Kit Included
Features Full duplex capability, Layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LLDP support, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), Class of Service (CoS), Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support
Yleistä
Advanced Switching Layer 3
Telineasennuspakkaus Sisältää
Expansion / Connectivity
Interfaces 24 x 1000Base-T - RJ-45 - PoE+ - 30 W ¦ 1 x USB - Type A ¦ 1 x serial (console) - RJ-45 - management ¦ 1 x management (Gigabit LAN) - RJ-45 - management ¦ 1 x management (mini-USB) - Type B - management ¦ 4 x 1000Base-X - SFP - uplink
Expansion Slots 1 (total) / 1 (free) x Stacking Module
Compliant Standards
Compliant Standards CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A
Huolto & Tuki
Huolto ja tuki Rajoitettu elinaikainen takuu
Verkko ja kommunikointi
Kaukohallintaprotokolla SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SSH, CLI, Telnet, SNMP 3, SNMP 2c
Verkko
Porttien lukumäärä 24
Koko tai muoto Työpöytä, Räkkiin asennettava
Jumbo-kehystuki 9198 tavua
Hallinnot Kyllä
Reititysprotokolla EIGRP for IPv6, OSPFv3, PIM-SSM, Policy-based routing (PBR), RIPng, BGP-4, IS-IS, RIP-1, RIP-2, PIM-SM, Staattinen IP reititys, PIM-DM
Pinottava Pinottava
Networking
Power Over Ethernet (PoE) PoE+
SFP Standard SFP
Fan Yes
SFP ports 4 *pcs
Mitat ja Paino
Leveys 44.5 cm
Syvyys 44.8 cm
Korkeus 4.4 cm
Paino 7.26 kg
